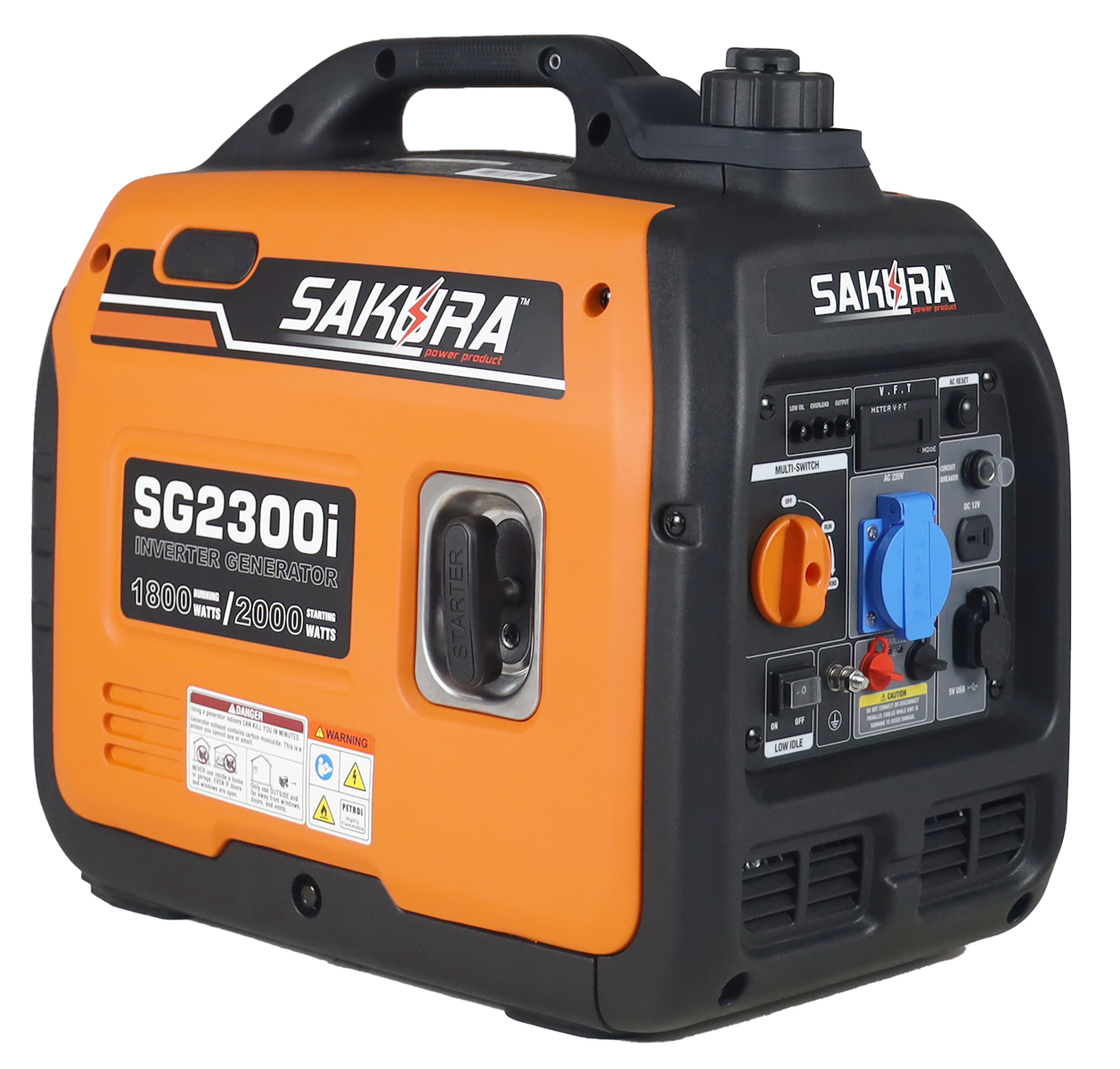

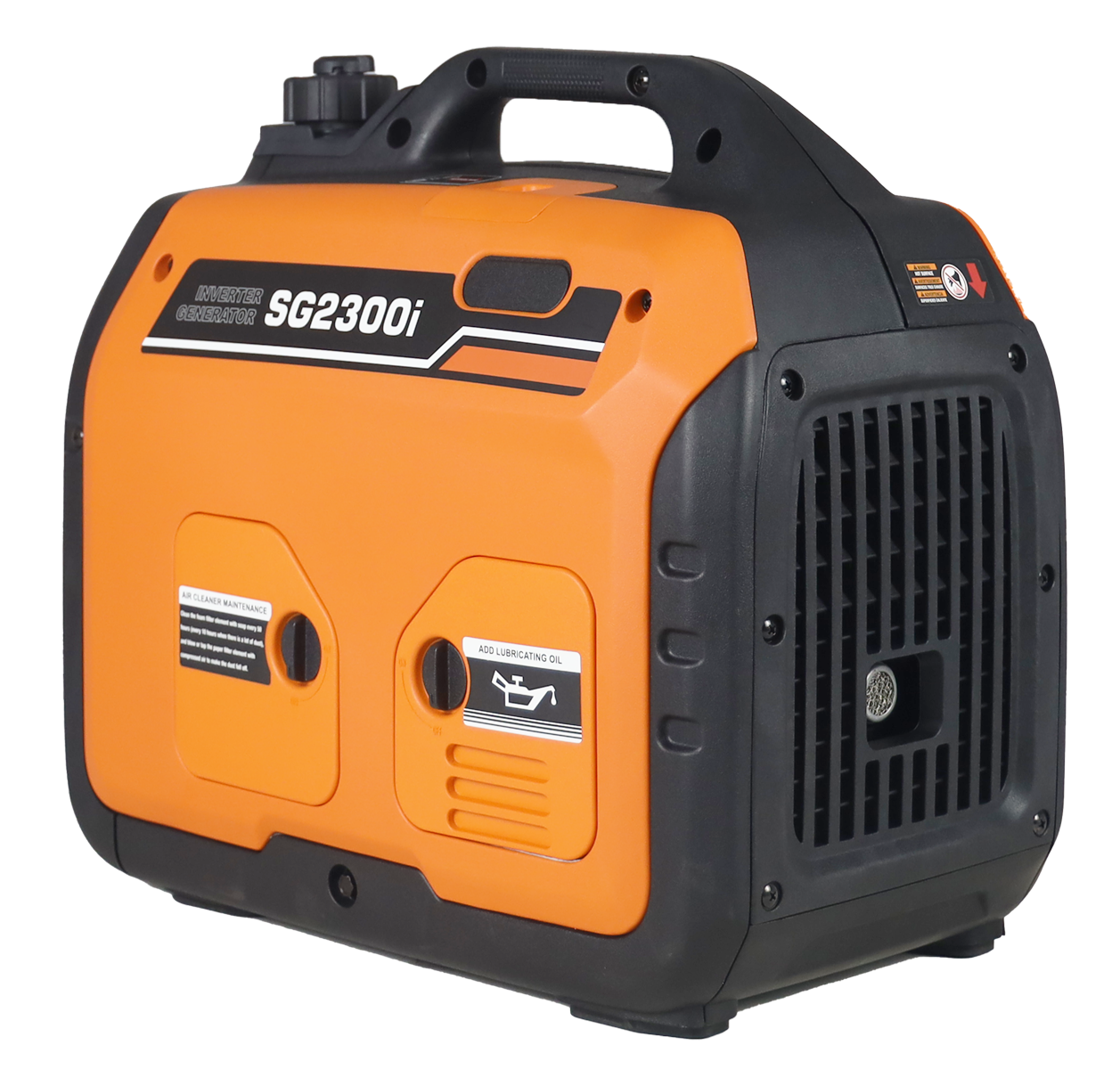

Features of 2.3 KW Inverter Generator | Best Home Generator Price in Bangladesh
4-storke OHV single-cylinder Engine:
In overhead valve (OHV) engines, the valves are positioned above the piston. The camshaft moves the valves through a tappet, pushrods and rocker arms. 4-stroke OHV engines provide more efficient combustion by allowing the air-fuel mixture to spread more evenly throughout the combustion chamber.
Stable Power for Sensitive Appliance:
Sensitive electronic equipment like Motor, AC, Refrigerator, Computer, Etc are prone to problems when exposed to unreliable power supplies.
This generator has stable power so you have no need to worry about bad or unreliable power.
Clean Power:
This SG4500i inverter generator’s total harmonic distortion (THD) is <3% that will produce a clear power.
High Starting Load Capacity:
We all know that the engine starting load is always higher than the normal load. And this inverter generator is very much capable of taking a high starting load.
Low Fuel Consumption:
It has an electronic speed control function which helps to saved your fuel costs.
Stable power for sensitive appliance:
When you need high-quality, reliable electricity for sensitive electronics or appliances, a pure sine wave inverter is required. It is required in circumstances where clean and dependable power is required to avoid potential damage or malfunctions caused by erratic power waveforms.
How does speed control work on generator?
If the speed is lower than the preset value of the electronic speed regulating board, the voltage output from the electronic speed regulator to the electronic actuator will increase, the oil supply of the pump will increase, and the speed of the engine will reach the preset value.
Technical Specification:
General Data:
| Model | SG2300i |
| Brand | Sakura |
| Max. Power | 2.3 KVA/2.3KW |
| Rated Power | 1.8 kVA/1.8KW |
| Volts | 220V |
| Frequency | 50HZ |
| Engine RPM | 5000 |
| Power Factor | 1 |
| Max. output (Ampere) | 8.3A |
| Starting System | Manual Recoil Starting |
Engine General Data:
| Engine Brand | Sakura |
| Model | 148F/P-2 |
| Fuel | Petrol/Octane |
| Fuel Tank Capacity | 3.7L |
| Cooling System | Air Cooled |
| Displacement | 79cc |
| Ignition System | Non Contact |
| Engine Oil Capacity | 0.5L |
Alternator General Data:
| Brand | Sakura |
| Alternator | Permanent Magnetism |
| Th. Class | F |
| Output Frequency Wrap | ±2% |
| Output Voltage Wrap | ±2% |
Dimension and Noise Level:
| Length | 510 mm |
| Width | 295 mm |
| Height | 440 mm |
| Weight | 21 KG |
| Sound From 7 m (dBA) 1/4 load | 62 |
Fuel Consumption:
| Fuel Consumption | Petrol/Octane |
| 100% Load | 1.2 L/H |
| 75% Load | 1 L/H |
| 50% Load | 0.6 L/H |
| Continuous Duration of Runs | 6 H |
Warranty: 1 Year.
Installation Charge: Free.
Notes: Buyer will bear cable & other accessories costs.
