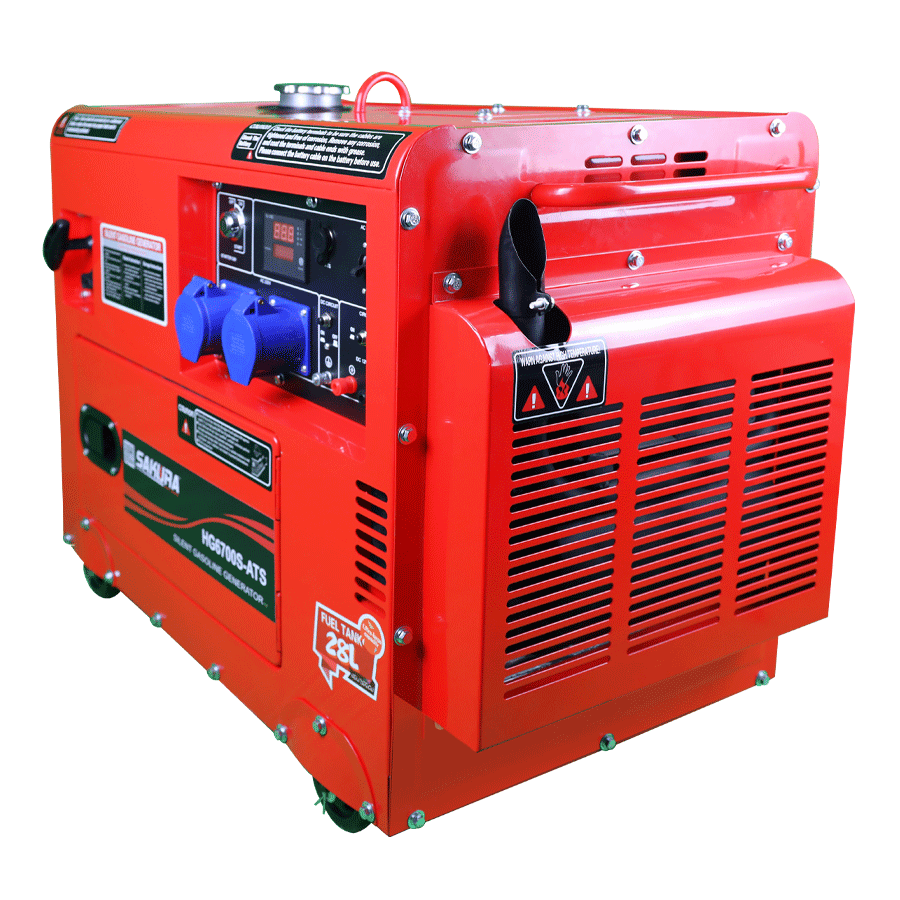

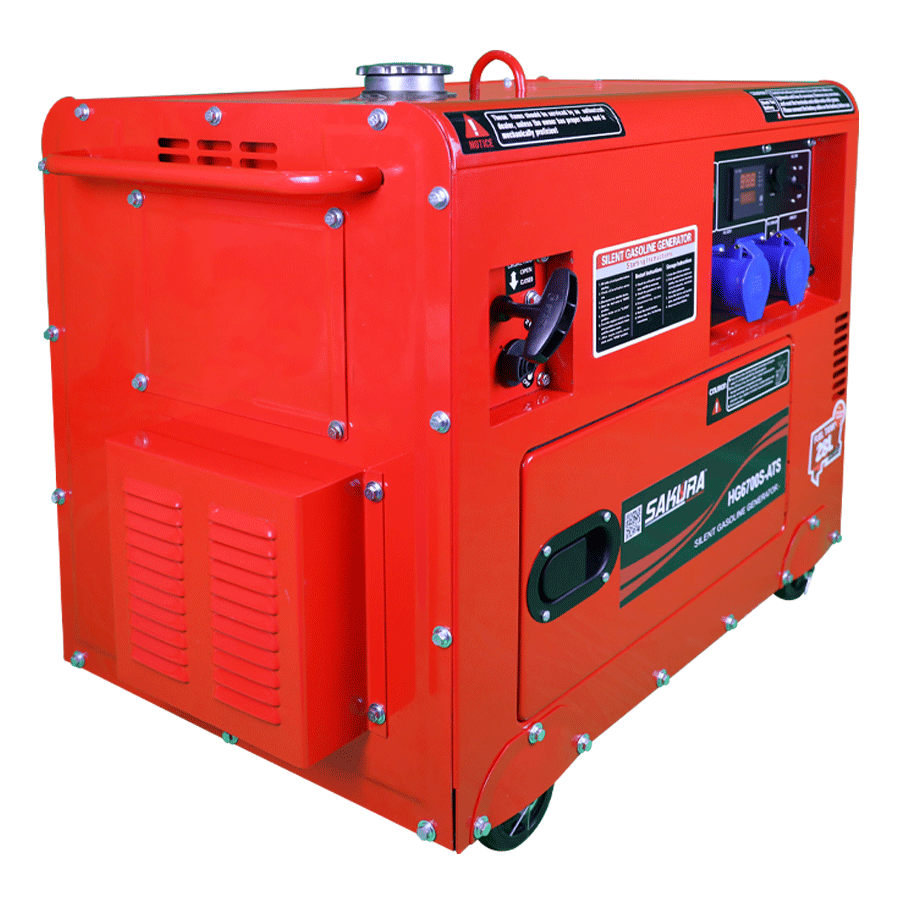

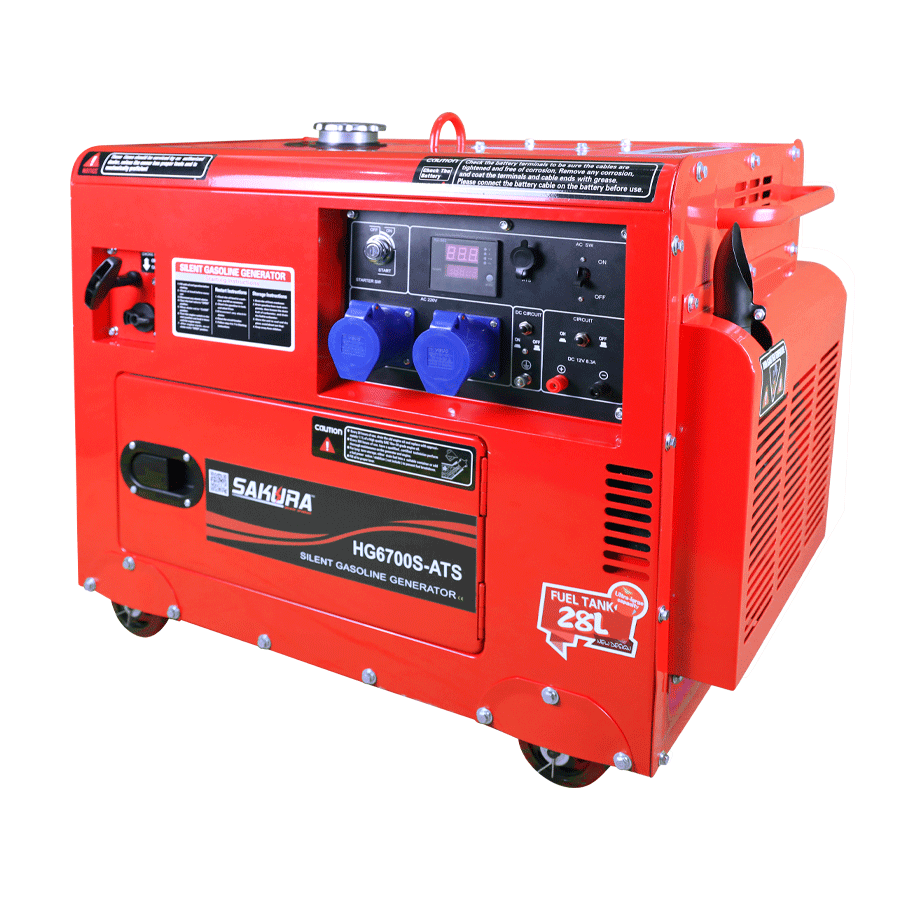

Sakura 5.5 KW soundproof petrol generator built with Honda GX390 engine. It offers precision-engineered components resulting in lower vibration, and a Ball Bearing-supported Crankshaft for greater stability. It also offers an improved piston design and a heavy-duty balancer shaft to deliver smooth performance.
Helical cut gears, a large capacity, multi-chamber exhaust system and sophisticated air intake system also make for an exceptionally quiet engine.
And with oil alert, a simple throttle control, large Fuel Tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug make it easy to use and maintain.
Let's see the full specifications of 5.5 KW Soundproof Honda Generator in Bangladesh
Technical Specification:
General Data:
| Model | HG6700S-ATS |
| Brand | Sakura |
| Rated Power | 5.0 KVA/5.0KW |
| Max. Power | 5.5 kVA/5.5KW |
| Volts | 220V |
| Frequency | 50HZ |
| Engine RPM | 3600 |
| Power Factor | 1 |
| Max. output (Ampere) | 25A |

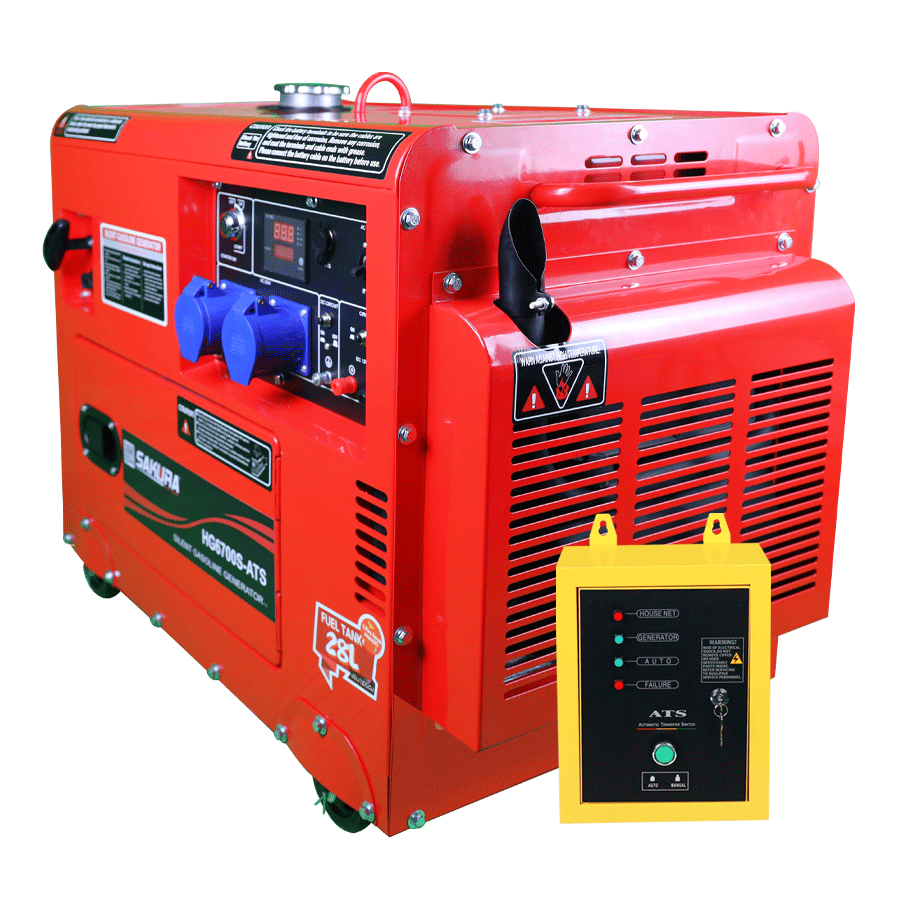

| Starting System | Automatic Start with ATS |
| Country of Made | China |
Engine General Data:
| Engine Brand | Honda |
| Model | GX390 |
| Fuel | Petrol/Octane |
| Fuel Tank Capacity | 28L |
| Cooling System | Air Cooled |
| Displacement/HP | 389cc/13 |
| Ignition System | Non Contact |
| Engine Oil Capacity | 1.1L |
| Lube Oil Grade | SAE 20W-50 |
Alternator General Data:
| Brand | Sakura |
| Alternator | Copper Alternator |
| Th. Class | H |
| Output Frequency Wrap | ±5% |
| Output Voltage Wrap | ±1.5% |
Dimension and Noise Level:
| Length | 36 inch |
| Width | 22 inch |
| Height | 29 inch |
| Weight | 140 |
| Sound From 7 m (dBA) 1/4 load | 65 |
Fuel Consumption:
| 100% Load | 2.5 L/H |
| 75% Load | 2.1 L/H |
| 50% Load | 1.4 L/H |
| Continuous Duration of Runs | 9.6 H |
Warranty: 1 Year Warranty.
Installation Charge: Free.
Notes: Buyer will bear cable & other accessories costs.
