Technical Specification:
General Data:

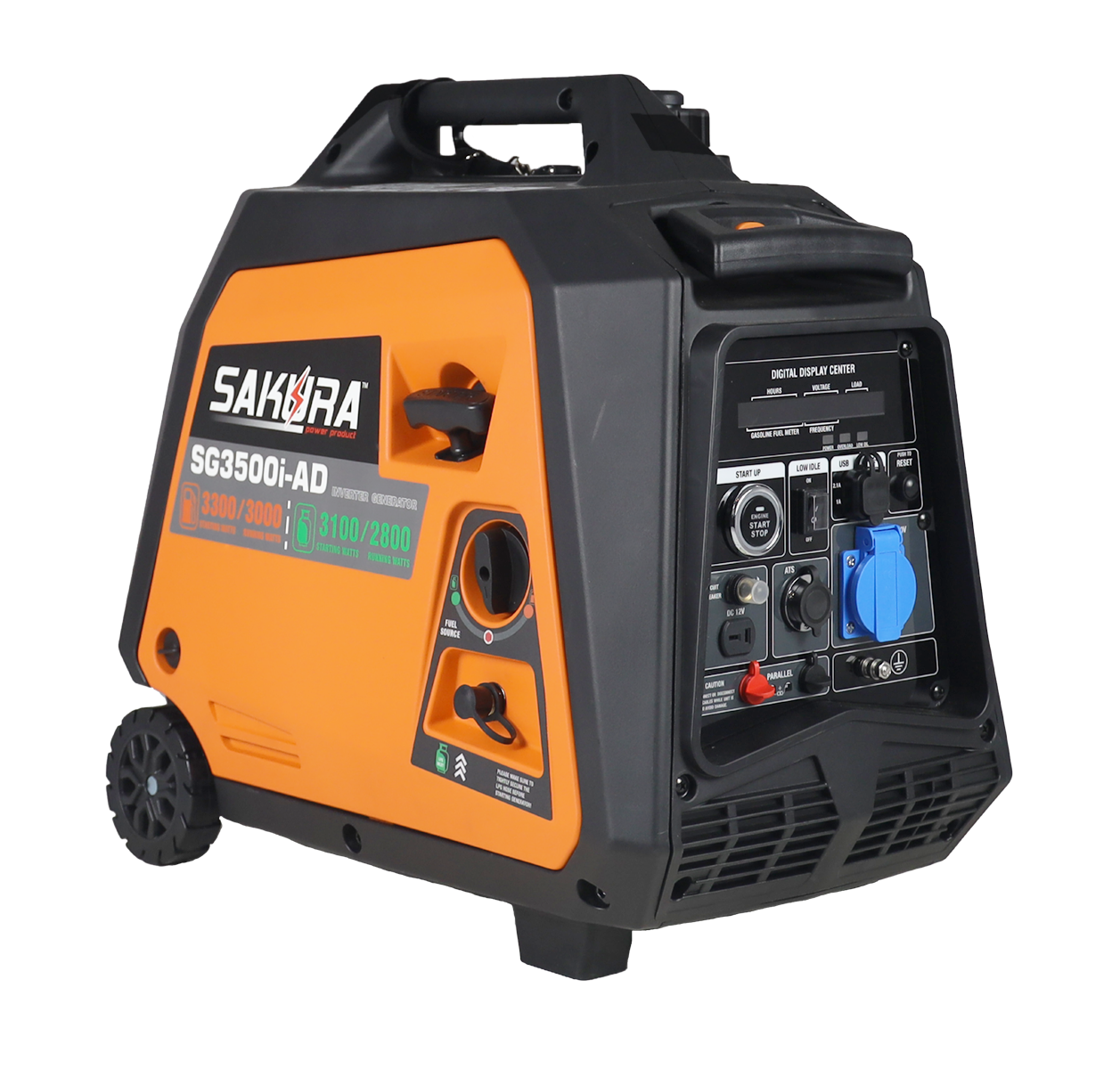

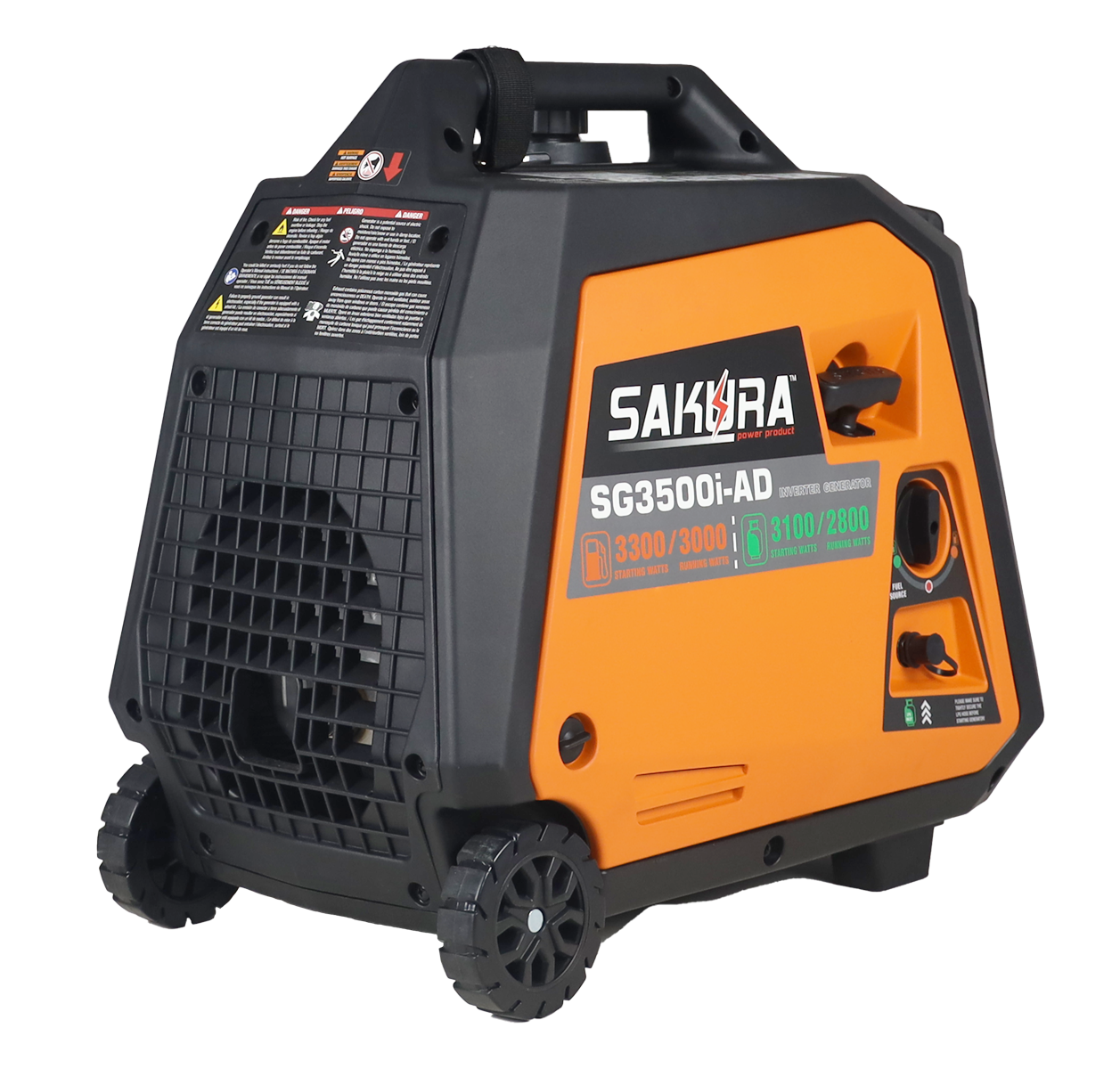

| Model | SG3500i-AD(Dual Fuel) |
| Brand | Sakura |
| Rated Power | 3.2 KVA/3.2KW |
| Max. Power | 3.5 kVA/3.5KW |
| Volts | 220V |
| Frequency | 50HZ |
| Engine RPM | 4850 |
| Power Factor | 1 |
| Max. output (Ampere) | 15.90A |
| Starting System | Auto Start with ATS, Remote, Electric |
Engine General Data:
| Engine Brand | Sakura |
| Model | 164F/P-2 |
| Fuel | LPG/Petrol/Octane |
| Fuel Tank Capacity | 7.5L |
| Cooling System | Air Cooled |
| Displacement | 145cc |
| Ignition System | Non Contact |
| Engine Oil Capacity | 0.5L |
Alternator General Data:
| Brand | Sakura |
| Alternator | Permanent Magnetism |
| Th. Class | F |
| Output Frequency Wrap | ±2% |
| Output Voltage Wrap | ±2% |
Dimension and Noise Level:
| Length | 530 mm |
| Width | 330 mm |
| Height | 480 mm |
| Weight | 25 KG |
| Sound From 7 m (dBA) 1/4 load | 62 |
Fuel Consumption:
| Fuel Consumption | LPG | Petrol/Octane |
| 100% Load | 2 L/H | 1.5 L/H |
| 75% Load | 1.2 L/H | 1.1 L/H |
| 50% Load | 0.9 L/H | 0.7 L/H |
| Continuous Duration of Runs | 6 H | 7 H |
Warranty: 1 Year.
Installation Charge: Free.
Notes: Buyer will bear cable & other accessories costs.
